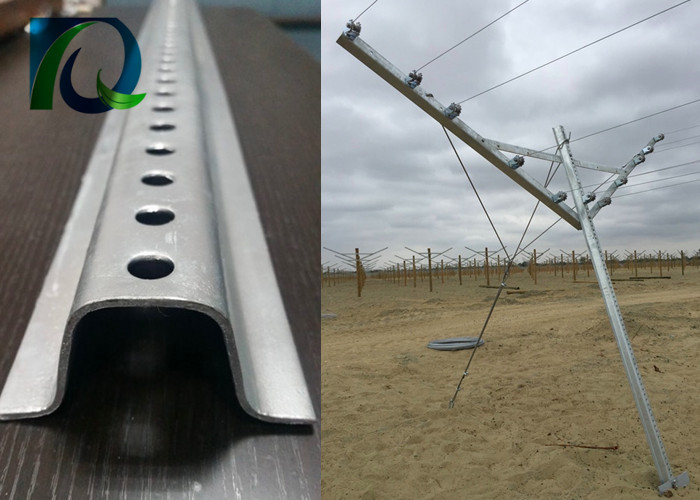

V Shaped Galvanized Open Gable Trellis System for Table Grape
Description of V Shaped Galvanized Open Gable Trellis System
Good fastening performance. Little maintenance. The vineyard post has nice surface, which needs less maintenance during its long service life.
Long service life. The high tensile and quality material and anti-corrosion performance of vineyard post make the post a long service life in good performance.
Beautiful and characteristic appearance helps to improve the image of wine chateau.
Long service life and advantage in the cost
The height of steel wire may be adjusted flexibly according to the growing age of grape.
The position and quantity of wire clamp trunking can be customized to meet the planting demand.
Specification of V Shaped Galvanized Open Gable Trellis System
| Head system on both ends of each row | Line system in the middle of each row | ||
| Materials | Steel | ||
| Length | Right/left arms | 0.8-1.5m,it can be customized | |
| Cross arm | |||
| Thickness | Right/left arms | 4.0mm,5.0mm etc | 2.0mm,2.5mm,2.7mm etc |
| Cross arm | |||
| Steel angle | Right/left arms | 1.75”X1”(44.45*25.4mm) 2”X2”(50.8*50.8mm) 2”X1.5” (50.8*38mm) etc | |
| Cross arm | |||
| Surface treatment | Galvanized,hot dipped galvanized etc | ||
| The holes | Round holes or “t” Type holes | ||
| MOQ | A 20’container | ||
A set t type vineyard post= a right arm + a left arm +a cross arm And with some accessories | |||
Material: Hot rolled steel sheet,Angle Steel
Thickness: 2.0mm, 2.5mm
Certer bar: 1300mm, 1400mm
Lateral bar: 1500mm, 1600mm
Surface treatment: Hot dipped galvanized, Black (no treated)
Packing: on pallet
Accessories
Wire strainer: To connect the open gable arms with the galvanized steel wire
Wire Connector: To connect the open gable arms with the galvanized steel wire
Clips : To connect the open gable arms with the steel wire rope
Aluminium Ferrule,Steel Wire Rope,Bolts and Nuts
Others
Products Features of V Shaped Galvanized Open Gable Trellis System
Replace the traditional wood post. Strongest design, easy set-up and long life
Wire slot that provides complete control of trellis wires
Reduced installation and set up costs
Lower labor costs
Allows max vine growth potential, get more sunlight
Reduce tree damage
Can be recycle
Open Gable Trellis System, vineyard post, vineyard trellisings,orchard stake,garden post,cherry trellisings,passion fruit post,
post Grape post Passion fruit trellisings Orchard post Open gable trellising accessories
|
|
